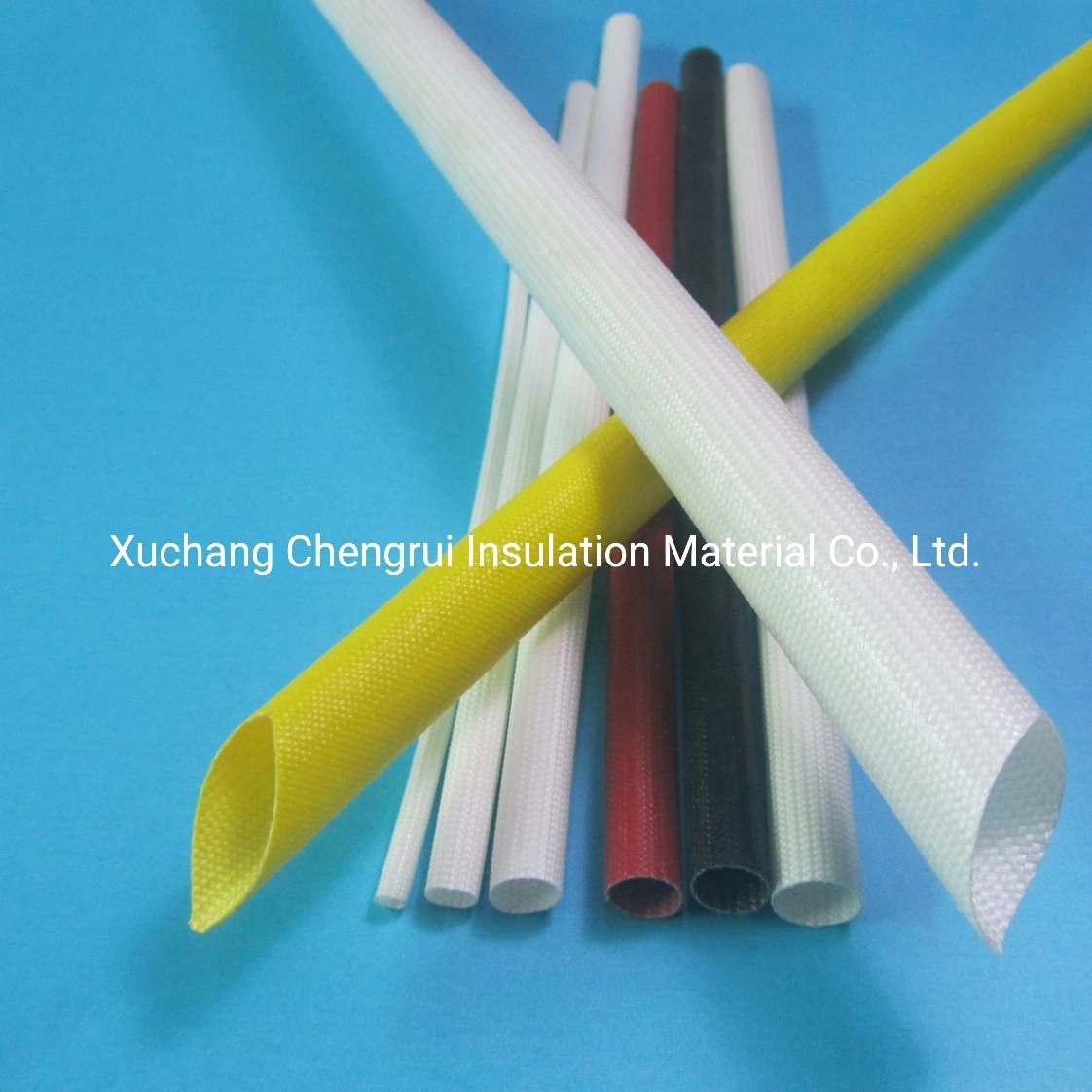

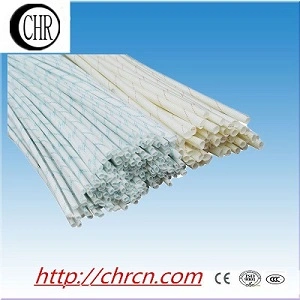

Electrical fiberglass Insulation Sleeving is made of non-alkali fiberglass sleeving coated with different kinds of resin or rubber under high temperature. The model of fiberglass sleeving depends on the kind of coated meterial.
2715 PVC insulation fiberglass sleeving is made of non-alkali fiberglass sleeving coated with polyvinyl chloride resin.
2740 fiberglass sleeving coated with acrylic resin
2751 fiberglass sleeving coated with silicon rubber
2753 fiberglass sleeving coated with self-extinguish silicon resin
Property: With excellent softness and elasticity, high dielectric and chemical property.
Used for the wiring insulation and mechanical protection for motors, electrical appliances, electrical instruments, wireless sets and domestic electrical appliances
Break Down Voltage:
2715 PVC fiberglass sleeving: 2.5KV, 4KV, 7KV
2740 Acrylic fiberglass sleeving: 2.5KV, 4KV
2751silicon rubber fiberglass sleeving: 2.5KV, 4KV
2753 fiberglass sleeving: 1.5KV, 2.5KV, 4KV
| Size | I. D. (mm) | Wall thickness (mm) | |||
| Min. | Max. | SSG1500V | SSG2500V | SSG4000V | |
| 1 | 1 | 1.3 | 0.40± 0.12 | 0.41± 0.12 | 0.50± 0.15 |
| 1.5 | 1.5 | 1.8 | 0.40± 0.12 | 0.41± 0.12 | 0.50± 0.15 |
| 2 | 2 | 2.3 | 0.40± 0.12 | 0.41± 0.12 | 0.50± 0.15 |
| 2.5 | 2.5 | 2.8 | 0.40± 0.12 | 0.41± 0.12 | 0.50± 0.15 |
| 3 | 3 | 3.3 | 0.50± 0.12 | 0.52± 0.12 | 0.52± 0.15 |
| 3.5 | 3.5 | 3.8 | 0.50± 0.12 | 0.52± 0.12 | 0.52± 0.15 |
| 4 | 4 | 4.3 | 0.50± 0.12 | 0.52± 0.12 | 0.52± 0.15 |
| 5 | 5 | 5.3 | 0.50± 0.12 | 0.52± 0.12 | 0.55± 0.15 |
| 6 | 6 | 6.3 | 0.50± 0.12 | 0.52± 0.12 | 0.55± 0.15 |
| 7 | 7 | 7.3 | 0.50± 0.12 | 0.52± 0.12 | 0.55± 0.15 |
| 8 | 8 | 8.3 | 0.50± 0.12 | 0.52± 0.12 | 0.55± 0.15 |
| 9 | 9 | 9.3 | 0.60± 0.12 | 0.62± 0.12 | 0.65± 0.15 |
| 10 | 10 | 10.3 | 0.60± 0.12 | 0.62± 0.12 | 0.65± 0.15 |
| 12 | 12 | 12.3 | 0.60± 0.12 | 0.62± 0.12 | 0.65± 0.15 |
| 14 | 14 | 14.3 | 0.70± 0.12 | 0.73± 0.12 | 0.78± 0.15 |
| 16 | 16 | 16.3 | 0.70± 0.12 | 0.73± 0.12 | 0.78± 0.15 |
