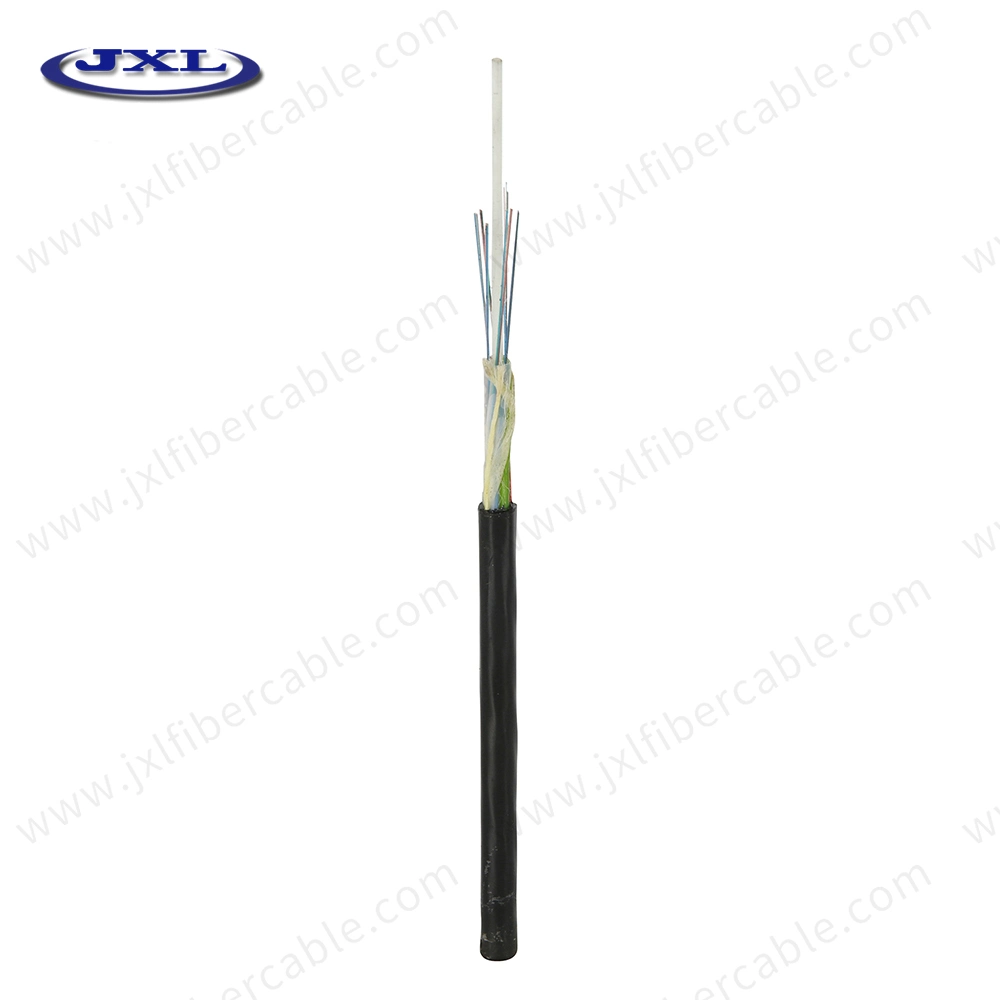

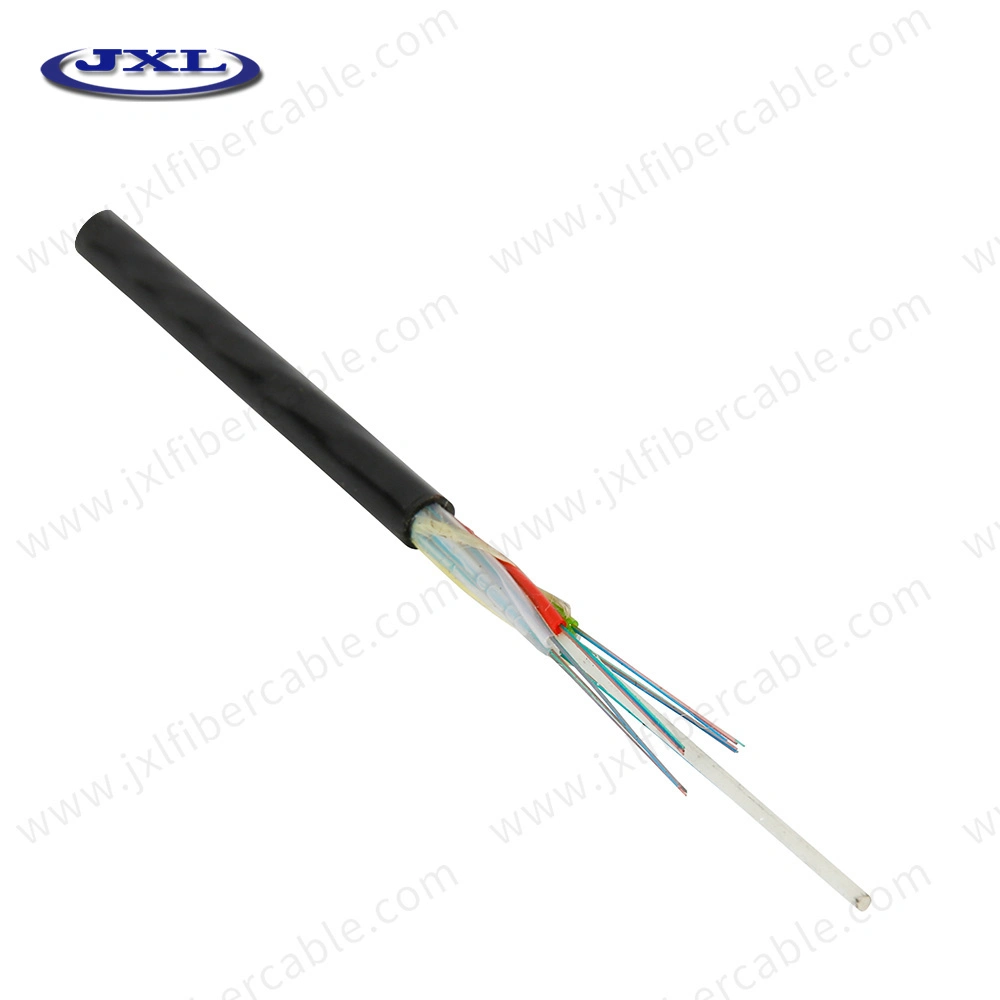

12 Core G652D FRP GYFTY Fiber Optic Cable With Glass Yarn Anti Rodent PE Jacket
GYFTY fiber optic cable is a non-metallic cable used for power transmission system, excessive thunder areas and high electromagnetic interface. Its mainly application is for aerial or duct use. We supply both single mode GYFTY cable and multimode GYFTY cables.
GYFTY FRP locates in the center of cores as a non-metallic strength member. The cable tubes, which are filled with filling compound, are stranded around the strength member. Then the aramid yarn is applied over water proof material, the cable is completed with a PE sheath. GYFTY cables are available from 2 cores to 144 cores. It is used in high-voltage area for long distance communications.
Optical Characteristics
| G.652 | G.655 | 50/125μm | 62.5/125μm | |
Attenuation | @850nm |
|
| ≤3.0 dB/km | ≤3.0 dB/km |
@1300nm |
|
| ≤1.0 dB/km | ≤1.0 dB/km | |
@1310nm | ≤0.36 dB/km | ≤0.40 dB/km |
|
| |
@1550nm | ≤0.22 dB/km | ≤0.23dB/km |
|
| |
Bandwidth (Class A) | @850nm |
|
| ≥500 MHz·km | ≥200 MHz·km |
@1300nm |
|
| ≥1000 MHz·km | ≥600 MHz·km | |
Numerical Aperture |
|
| 0.200±0.015NA | 0.275±0.015NA | |
Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm |
|
| |
Technical Parameters
Cable Type | Fiber Count | Tubes | Fillers | Cable Diameter | Cable Weight kg/km | Tensile Strength | Crush Resistance | Bending Radius |
GYFTY-2~6 | 2~6 | 1 | 5 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
GYFTY-8~12 | 8~12 | 2 | 4 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
GYFTY-14~18 | 14~18 | 3 | 3 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
GYFTY -20~24 | 20~24 | 4 | 2 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
GYFTY-26~30 | 26~30 | 5 | 1 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
GYFTY-32~36 | 32~36 | 6 | 0 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
GYFTY-2~6 | 2~6 | 1 | 6 | 11.0 | 97 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-8~12 | 8~12 | 2 | 5 | 11.0 | 97 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-14~18 | 14~18 | 3 | 4 | 11.0 | 97 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-20~24 | 20~24 | 4 | 3 | 11.0 | 97 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-26~30 | 26~30 | 5 | 2 | 11.0 | 97 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-32~36 | 32~36 | 6 | 1 | 11.0 | 97 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-38~42 | 38~42 | 7 | 0 | 11.0 | 97 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-44~48 | 44~48 | 4 | 2 | 12.0 | 113 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-50~60 | 50~60 | 5 | 1 | 12.0 | 113 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-62~72 | 62~72 | 6 | 0 | 12.0 | 113 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-2~6 | 2~6 | 1 | 7 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-8~12 | 8~12 | 2 | 6 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-14~18 | 14~18 | 3 | 5 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-20~24 | 20~24 | 4 | 4 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-26~30 | 26~30 | 5 | 3 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-32~36 | 32~36 | 6 | 2 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-38~42 | 38~42 | 7 | 1 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-44~48 | 44~48 | 8 | 0 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-50~60 | 50~60 | 5 | 2 | 13.0 | 137 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-62~72 | 62~72 | 6 | 1 | 13.0 | 137 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-74~84 | 74~84 | 7 | 0 | 13.0 | 137 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-86~96 | 86~96 | 8 | 0 | 13.9 | 154 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-98~108 | 98~108 | 9 | 1 | 15.3 | 185 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-110~120 | 110~120 | 10 | 0 | 15.3 | 185 | 1000/3000 | 300/1000 | 10D/20D |
